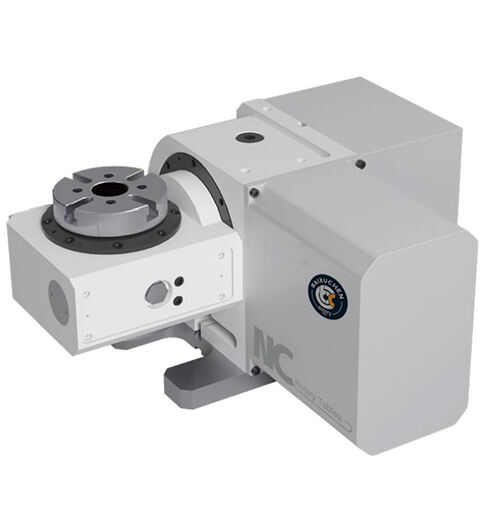

WT-S200 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
Discover the precision and reliability of the Raydafon WT-S200 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery. Designed for professionals and enthusiasts alike, this state-of-the-art rotary table is a game-changer in the world of CNC machining. Its robust construction and advanced technology ensure unparalleled accuracy and durability, making it the perfect choice for complex machining tasks. Whether you're in the aerospace, automotive, or manufacturing industry, the WT-S200 enhances your CNC machinery's capabilities, allowing for seamless multi-sided machining with precision and ease. Experience the difference with Raydafon – where innovation meets excellence. Elevate your projects to new heights with the WT-S200, the rotary table that stands out for its superior quality, performance, and reliability. Choose Raydafon for a solution that not only meets but exceeds your machining expectations.
High precision, high performance, high efficiency
Five axis machining, modular design
Optional fixture oil circuit, Optional hydraulic brake
Product Model | WT-S200 | Servo motor (optional) | Rotation axis β4i HF-54;Tilt axis β8i HF-104 |
Panel Size | Φ200mm | Reduction Ratio | Rotation axis1:90 ;Tilt axis1:90 |
Disk Aperture | Φ55mm | Maximum Rotation Speed Of Worktable | Rotation axis 55.5r.p.m ;Tilt axis 55.5r.p.m |
Center Trough Hole | Φ45mm | Minimum Setting Angle | 0.001°deg |
Disk Height | 247.5mm | Segmentation Accuracy | Rotation axis20″sec;Tilt axis 30″sec |
Disk T-Slot | 12H8mm | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 4''sec |
Positioning Button | 14H7mm | Locking Method | Rotation axis pressure 5Kg/cm²;Tilt axis pressure 5Kg/cm² |
Tilt Axis Angle Range | -45 ~110° | Brake Torque | Rotation axis 31Kg/m ;Tilt axis 31Kg/m |
Net Weight (about) | 155Kg | Allowable Cutting Force | Rotation axis 18Kg.m ;Tilt axis 18Kg.m |
Horizontal placement | 80KG | Placement | 50KG |
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad.
Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US. |
