Chain Coupling For Greenhouse Window Ventilation Motor Reduction

Raydafon's Chain Coupling for Greenhouse Window Ventilation Motor Reduction is the ultimate solution for seamless and efficient greenhouse climate control. Designed to connect ventilation motors to window mechanisms effortlessly, this product ensures your plants enjoy the perfect environment for growth. Its robust construction and precision engineering stand out as core strengths, offering unmatched durability and reliability. Whether you're a commercial greenhouse operator or a passionate home gardener, this chain coupling is tailored to meet your needs, enhancing ventilation systems with ease and precision. Experience the satisfaction of a well-ventilated greenhouse, where plant health and productivity flourish. Unlike standard couplings, Raydafon's innovation boasts a unique blend of flexibility and strength, ensuring smooth operation under various conditions. Choose Raydafon for a smarter, more efficient approach to greenhouse ventilation.

Send Inquiry

Product Description

chain coupling for Greenhouse Window Ventilation Motor Reduction

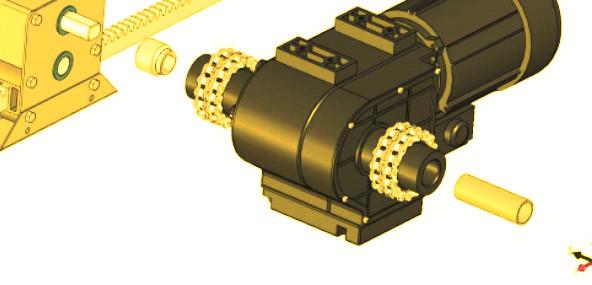

Zinc-plated sprocket wheel for mounting on the RLD80/200 gearbox, for using chain couplings.

Art. no.	Description	[m] kg	Chain in	[z]	[M] Nm	Angle °	Shaft mm

416952	SPROCKET 1/2\z16\S\A25	0,47	1⁄2"x5⁄16"	16	240	3°	25

Chain Coupling For Greenhouse Window Ventilation Motor Reduction

Chain coupling 1/2 x5/16 - 12 tooth - B1 - B5/4 for greenhouse

Zinc-plated chain coupling for connecting RW45 and RAL120/90/60 motor gearboxes or RH40 gearboxes to tubular shafts. The chain coupling is suitable for absorbing small centering and alignment errors. The chain coupling set consists of a 12-tooth 1⁄2"x5⁄16" sprocket for the tubular shaft, a duplex chain and a master link. The tubular shaft sprocket must be fixed to the tubular shaft by welding. The RW45 and RAL120/90/60 motor gearboxes are fitted standard with 12-tooth 1⁄2"x5⁄16" sprockets.

Art. no.	Description	[m] kg	Chain in	[z]	[M] Nm	Angle °	Tube in
Art. no.	Description	[m] kg	Chain in	[z]	[M] Nm	Angle °	Tube in
590000	CH-COUP 1/2\z12\B1	0,41	1⁄2"x5⁄16"	12	120	1°	1"
590003	CH-COUP 1/2\z12\B5/4	0,55	1⁄2"x5⁄16"	12	120	1°	5/4"
590099	CH-COUP 1/2\z12\B2	0,55	1⁄2"x5⁄16"	12	120	1°	2"
416256	SPROCKET 1/2\z12\B1	0,20	1⁄2"x5⁄16"	12	120	0,5°	1"
418062	SPROCKET 1/2\z12\B5/4	0,35	1⁄2"x5⁄16"	12	120	0,5°	5/4"
419751	SPROCKET 1/2\z12\B2\VZ	0,32	1⁄2"x5⁄16"	12	120	0,5°	2"
414246	CHAIN 1/2x5/16\DU\p11	0,20	1⁄2"x5⁄16"
281010	CHAIN CONNECTOR 1/2x5/16\DU	0,02	1⁄2"x5⁄16"

Chain Coupling For Greenhouse Window Ventilation Motor Reduction

Zinc-plated bolted chain coupling for connecting RW45 and RAL120/90/60 motor gearboxes or RH40 gearboxes with tubular shafts. The bolted chain coupling is suitable for absorbing small centering and alignment errors. The bolted chain coupling set consists of a 12-tooth 1⁄2"x5⁄16" bolted sprocket for the tubular shaft, a duplex chain and a master link. The bolted sprocket for tubular shafts is mounted on the tubular shaft by a bolt and nut. The RW45 and RAL120/90/60 motor gearboxes are fitted standard with 12-tooth 1⁄2"x5⁄16" sprockets.

Art. no.	Description	[m] kg	Chain in	[z]	[M] Nm	Angle °	Tube in
Art. no.	Description	[m] kg	Chain in	[z]	[M] Nm	Angle °	Tube in
590001	CH-COUP 1/2\z12\B1\BOLT	0,85	1⁄2"x5⁄16"	12	120	1°	1"
590002	CH-COUP 1/2\z12\B5/4\BOLT	0,89	1⁄2"x5⁄16"	12	120	1°	5/4"
417410	SPROCKET 1/2\z12\B1\BOLT	0,45	1⁄2"x5⁄16"	12	120	0,5°	1"
417461	SPROCKET 1/2\z12\B5/4\BOLT	0,50	1⁄2"x5⁄16"	12	120	0,5°	5/4"
414246	CHAIN 1/2x5/16\DU\p11	0,20	1⁄2"x5⁄16"
281010	CHAIN CONNECTOR 1/2x5/16\DU	0,02	1⁄2"x5⁄16"
